Next-Generation Energy Storage Made Simple
The Enphase IQ Battery 5P is an all-in-one, AC-coupled storage system giving homeowners flexible control over their solar energy. With 5.0 kWh of usable capacity and six embedded microinverters, it provides 3.84 kW of continuous power in a compact design. Designed for adaptability, the IQ Battery 5P supports energy independence, backup power during outages, and scalable expansion to fit a range of home energy needs.
Key Highlights:
5.0 kWh usable energy capacity per unit
Six embedded IQ8D-BAT microinverters
3.84 kW continuous power
Quiet, passive cooling with no moving parts

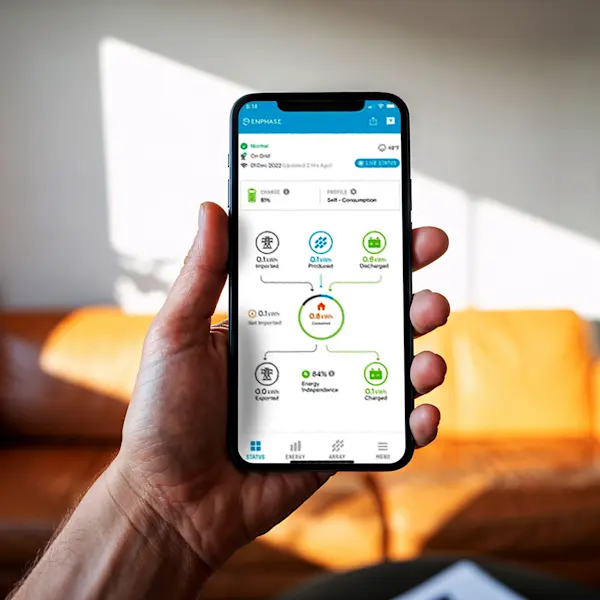

Remote monitoring and control via the Enphase App
15-year limited warranty (up to 6,000 cycles)
Features:
Model: Enphase IQ Battery 5P
Limited Warranty: 15 years (up to 6,000 cycles)
Energy Capacity: 5.0 kWh
Continuous Power Rating: 3.84 kW
Peak Output Power: 7.68 kW (3 sec) / 6.14 kW (10 sec)
DC Round-Trip Efficiency: 96%
AC Round-Trip Efficiency: 90%*
Chemistry: Lithium Iron Phosphate (LFP)
Weight: 174 lbs (79 kg)
Dimensions: 38.6" H x 21.7" W x 7.4" D
* AC to the battery to AC at 50% power rating.
For backup capability, the IQ Battery 5P works with the Enphase Energy System when paired with the IQ System Controller 3/3G.
How It Works
The IQ Battery 5P stores excess solar energy produced during the day for later use in your home. Built-in microinverters provide reliable AC power during peak hours, at night, or when the grid is unavailable.
Start with one 5.0 kWh unit and scale by adding more batteries to meet evolving energy needs.
Benefits of Choosing the Enphase 5P
Reliable Power Options:
Supports essential home loads with continuous and peak output ratings.
Scalable Design:
Easily add units as energy needs grow.
Safety and Durability:
LFP chemistry and passive cooling enhance safety and long-term performance.
Smart Energy Control:
Monitor and manage usage with the Enphase App.
Peace of Mind Warranty:
Backed by a 15-year limited warranty covering up to 6,000 cycles.
What Does an Enphase IQ Battery 5P Cost?
Installation costs vary based on your home’s energy use, system size, and number of batteries. Our team will help design a system meeting your energy goals, budget, and lifestyle.
Review the Enphase 5P Battery Data Sheet
Energy savings, bill reductions, and performance outcomes vary based on load profile, solar production, utility rate structure (e.g., time-of-use rates), battery sizing, and site-specific conditions. The information presented is for educational purposes and is not a guarantee of specific performance or savings
